Optional with OBD/Shutter
No Join in every corner
Long Lasting

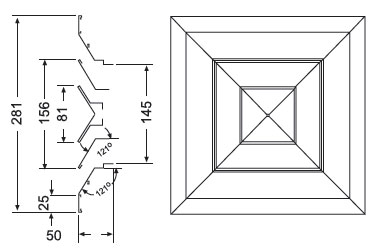

Presscore Diffuser Type PC-DIF 145
Neck Size (mm) : 145 x 145
Face Size (mm) : 281
Frame Thickness (mm) : 1 mm
Core Thickness (mm) : 1 mm

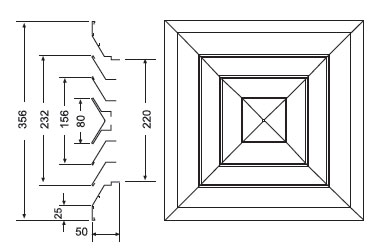

Presscore Diffuser Type PC-DIF 220
Neck Size (mm) : 220 x 220
Face Size (mm) : 356
Frame Thickness (mm) : 1 mm
Core Thickness (mm) : 1 mm

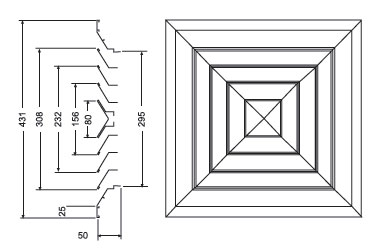

Presscore Diffuser Type PC-DIF 295
Neck Size (mm) : 295 x 295
Face Size (mm) : 431
Frame Thickness (mm) : 1 mm
Core Thickness (mm) : 1 mm

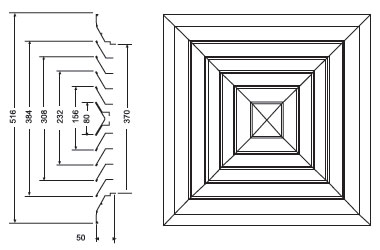

Presscore Diffuser Type PC-DIF 370
Neck Size (mm) : 370 x 370
Face Size (mm) : 516
Frame Thickness (mm) : 1 mm
Core Thickness (mm) : 1 mm

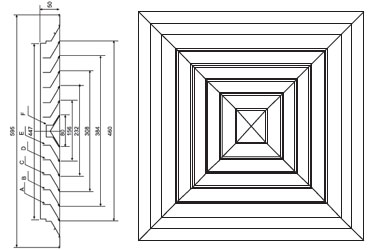

Presscore Diffuser Type PC-DIF 595
Neck Size (mm) : 449 x 449
Face Size (mm) : 595
Frame Thickness (mm) : 1 mm
Core Thickness (mm) : 1 mm

Material : Extruded Aluminium
Surface Finish : Baked white powder or anti condensation coating
